Our Edge Node is a patented high gain, multi-beam phased array antenna system that provides high spectral efficiency and directivity to dramatically increase the throughput and range of standard Wifi access points to low cost Wifi end-user terminals.
Multibeam phased array wireless access and PtmP backhaul integrated solution

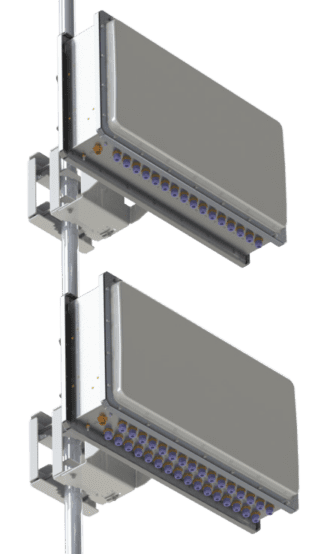

The Curvalux 2.0
Edge Node
- Operates in the 5GHz frequency bands
- Innovative antenna delivers highest capacity and coverage
- 16 simultaneous adjustable high gain, low side lobe beams
- Extremely power efficient
2.0 Edge Node highlights
Solar Powered
150W for edge node terminal, can be solar powered for deployment in rural areas
Multibeam Antenna
16 narrow beams (7° in azimuth and 18° elevation) 60° phased array antenna system
Wifi 5 and Wifi 6
Over 3Gbps of total throughput using WiFi 6 with LoS
Interference Mitigation
Innovative, high directive multi-beam antenna for improved isolation
High Capacity
High capacity per square meter, high bandwidth using multiple access points
Cost Per User
High number of users per antenna system and low-cost CPE
Dual-Polarization
Optimized dual-polarization performance, Dual linear Horizontal + Vertical
Open System
Compatible with third party WiFi APs providing ranges up to 5km [AP dependent]
